New Vision Metron TFE Extensions

Triathlon Forum
61

Thank you. I would suggest just updating the catalog with more specific dimensions so prospective buyers can get a better idea for comparison purposes.

62

Thank you. I would suggest just updating the catalog with more specific dimensions so prospective buyers can get a better idea for comparison purposes.


63

Thank you. I would suggest just updating the catalog with more specific dimensions so prospective buyers can get a better idea for comparison purposes.

Brilliant. Thanks

64

Kevin, is there a spec for the mounting screws? I am thinking about mounting the TFE on the Cervelo P5D, but not sure if it will require an adaptor

thanks

65

We have an adapter for the P5X only and not the P5D.

66

Will these, or is there a way to make them fit a Trinity?

Thanks

67

Not at this time.

68

Where can I find those adapter for the p5x ?

69

Fsaproshop.com part number 670-0421000870.

https://www.fsaproshop.com/products/vision-tfe-adaptor
.

70

Do you have a photo of it ?

71

https://shop.visiontechusa.com/en/type/aerobars/accessories/triathlon-time-trial/metron-tfe-specialized-shiv-adaptor
.

72

The P5D now comes with the same EX10 riser and bracket system as the PX series.
So if your bracket replaces the EX10 one the latest P5D is fine and an older P5D would just need the EX10 riser (if those could be found)

OTOH if the adaptor is actually for the P5X (the web link said PX but there is no pic to confirm) that is a different riser again.

73

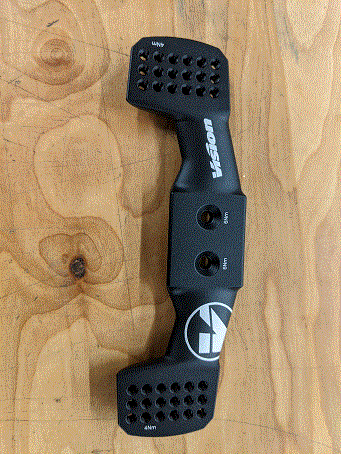

I have attached an picture of the adapter.

TFE adapter.gif

74

Kevin, can you confirm if this is for the EX10 monoriser, it looks like it is.

75

That’s definitely for the EX10, the bolt orientation and shape of the P5X one are different.

76

It’s indeed for a ex10 riser. A nice platform to mount other semi custom extensions on it

77

I have attached an picture of the adapter.

I can´t find the EX10 adapter on the Vision Website.

78

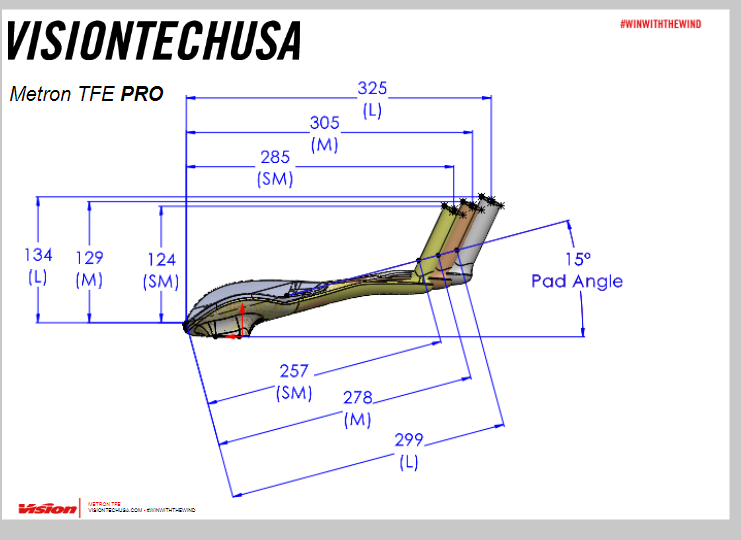

The TFE Pro is not UCI legal. The Pro would be 124mm to 134mm depending on the size of the extension. The TFE would be be below the 100mm UCI limit. It falls in the 75mm range.

Kevin

The height measurement, per UCI regs, is taken from the center of the pad, not the rear, as shown in the diagram in a post above. If the diagram is accurately depicting the measurement as taken at the back of the pad, then there should be no problems with the UCI regs, if you are okay with taking a little off the ends.

79

My measurements are accurate to the UCI regs and not the diagram.

80

It is not on the website. Please call 425-488-8653 and speak with our sales team. My previous link was incorrect.
