Does anyone have a ready source for the hydraulic hose insert for Shimano BR-R8070 disc brakes? The hose is SM-BH90-JK. I’m pretty sure the part is SM-BH90-JK-SSR. I can find inserts that’ll fit all sorts of BH90 hose, but not this hose. Thanks in advance.
https://www.amazon.com/SHIMANO-SM-BH90-Olive-Connecting-Insert/dp/B005GXQZ1Y
I also see them on eBay, Jenson, and many others.
https://www.amazon.com/SHIMANO-SM-BH90-Olive-Connecting-Insert/dp/B005GXQZ1Y
I also see them on eBay, Jenson, and many others.

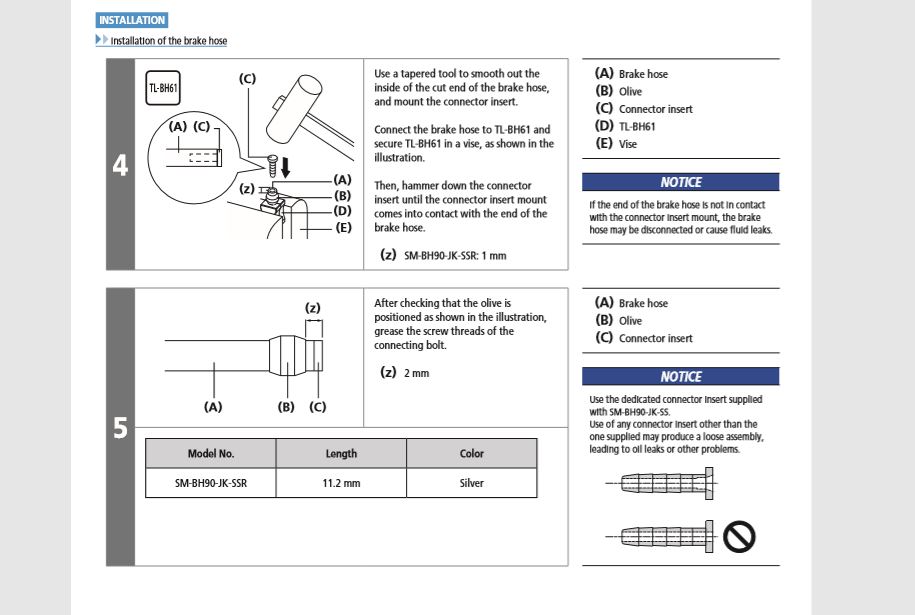

I’ve seen that one, the one on Jenson, and many others too. The question is whether it fits SM-BH90-JK brake hose. None of the ones that I’ve seen say that they do, and according to Shimano’s dealer manual, I need to be choosy in choosing my insert:
https://photos.google.com/album/AF1QipOtKyNqwWWEoXBgnXADSVgoPpCF3cl3D-1nS7Ss
If you have BH90 hose, that is the correct insert and olive.
In fact, you could just re-use the insert that you have in the hose if you want. (Yes, I know that Shimano says not to.)
If you have BH90 hose, that is the correct insert and olive.
In fact, you could just re-use the insert that you have in the hose if you want. (Yes, I know that Shimano says not to.)
I was thinking of trying that by carefully cutting the hose off the insert, but I’d like to have spares on hand in case that idea flops.
I might just order some inserts and see if they look like the one on the top, and not the one on the bottom, in the lower right-hand corner of Shimano manual. Shimano is explicit that I need the SM-BH90-JK-SSR insert, which seems to be specific to SM-BH90-JK hose, which is why I’m a bit skeptical that the inserts that are listed as being for other kinds of BH90 hose, e.g., BH90-SS, BH90-SB, etc., will work. I’m generally not too risk adverse, but I am when it comes to brakes.
That insert fits all of the BH90 hose.
