Moving to Carbon-Ti X-CarboRings - which crank arms?

So this weekend I was up close with a bike with Carbon-Ti chainrings and SRM cranks - and I’m all for a bit of carbon - got to get me some of those…!

I have 2020 12sp Force cranks (with a 48-35 standard setup) and Assioma pedals - so don’t need the SRM meter - so I’m a bit unsure how I would go about moving to this sort of setup without the expensive of the SRM Meter.

I see I could just swap the chainrings and keep the force cranks - but if we are trying to save some weight and get a more carbon finish this seems a bit of a waste (especially as I’m slowly moving bits here and there to Red) - add the fact, that the chainrings are made specifically for the current 4 bolt cranks - I would not be able to move to different cranks later, if I wanted to do this change in a bit by bit step.

This is where I’m a little confused, I think my only options are SRM Cranks (and meter…), Rotor Aldhu carbon cranks, or THM Clavicula ($$$ Ouch!)

Am i missing something?

they sure are pretty I agree. I haven’t seen them hands on yet but that is the one thing that I have been tempting to bling out my Colnago C64

these are what you need:

https://powermetercity.com/product/carbon-ti-x-carboring-2x-107-bcd-chainrings/

So this weekend I was up close with a bike with Carbon-Ti chainrings and SRM cranks - and I’m all for a bit of carbon - got to get me some of those…!

I have 2020 12sp Force cranks (with a 48-35 standard setup) and Assioma pedals - so don’t need the SRM meter - so I’m a bit unsure how I would go about moving to this sort of setup without the expensive of the SRM Meter.

I see I could just swap the chainrings and keep the force cranks - but if we are trying to save some weight and get a more carbon finish this seems a bit of a waste (especially as I’m slowly moving bits here and there to Red) - add the fact, that the chainrings are made specifically for the current 4 bolt cranks - I would not be able to move to different cranks later, if I wanted to do this change in a bit by bit step.

This is where I’m a little confused, I think my only options are SRM Cranks (and meter…), Rotor Aldhu carbon cranks, or THM Clavicula ($$$ Ouch!)

Am i missing something?

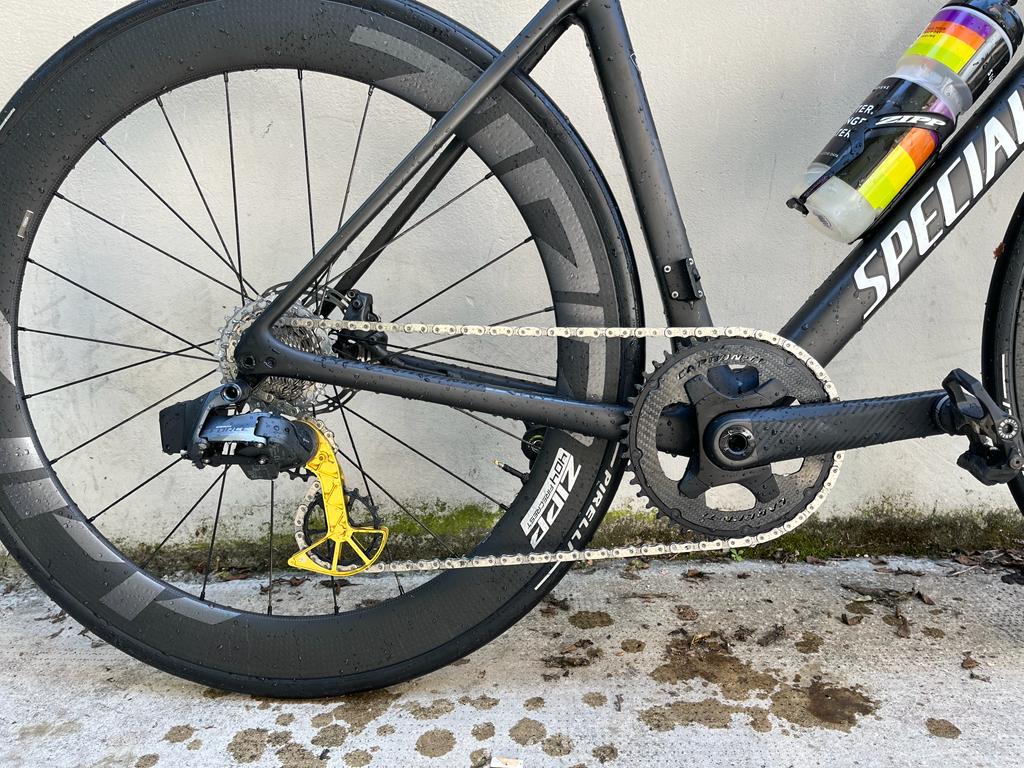

This is my solution with my Force Groupset

(https://i.postimg.cc/xdvkwjJj/Immagine-Whats-App-2023-06-21-ore-09-58-54.jpg)](https://postimages.org/)

Thanks,

I think I’ve got a better understanding of the whole crank / chainring setup now.

The crank arm themselves can be separated from the spider (with Red and Force using the same 8 bolt setup for the power spider - which is a 4 bolt setup to the chainrings) - so from my perspective I can for now just replace the chainrings and keep the force cranks - and then later I can swap out just the cranks for something else later.

Thanks for the photos!

Thanks,

I think I’ve got a better understanding of the whole crank / chainring setup now.

The crank arm themselves can be separated from the spider (with Red and Force using the same 8 bolt setup for the power spider - which is a 4 bolt setup to the chainrings) - so from my perspective I can for now just replace the chainrings and keep the force cranks - and then later I can swap out just the cranks for something else later.

Thanks for the photos!

Pay only attention that your Carbon Ti chainring have 107 bcd (bolt circle diameter) because I think that SRM Carbon TI chainring have 110 bcd

https://onlineshop.srm.de/it/shop/powermeter-it-2/strada/origin-strada-carbonio/

Pay only attention that your Carbon Ti chainring have 107 bcd

Thanks - good spot!

What have I done… (idiot looking) they do carbon centerlock 160mm discs too - gonna be an expensive month.

Ordered, gone for the 50/37 Setup too (with the specific 107 BCD Bolts) - will report back on how I messed up good and proper, fiddling with my perfectly working bike… LOL
