Di2 components needed for s-works shiv build?

Triathlon Forum
1

Orded the S-Works Shiv frame and plan to build with Shimano Ultegra Di2. Has anyone here done this? Anyone got a list of the specific components needed?

Any help would be appreciated

2

Here is my detailed approach and parts list for a Felt IA16. There are many ways to do this, so you could copy mine nearly identically, or go another route. Mine was a little different, because I used a bar-mounted Junction A and I had a place to hide a Junction B in the cockpit. Some bikes do not give you this flexibility, so you simply have to use a 5-port Junction A up front. The stuff in the back is the same for most bikes with internal batteries. You just need to measure your wires.

http://forum.slowtwitch.com/forum/Slowtwitch_Forums_C1/Triathlon_Forum_F1/Di2_Detailed_Upgrade_Write-Up_(Felt_IA16)_P6572184

3

Thanks, greatly appreciated reply. Also a really excellent post, thanks for sharing! Missed it when a did a search on the forum…

4

Yeah, search on this forum is inoperative for any phrase that contains a number.

5

I’ve just did it, here’s the information you need :

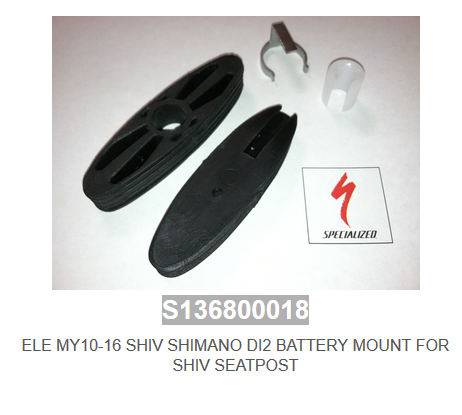

For internal battery, you need to order this part with your LBS :

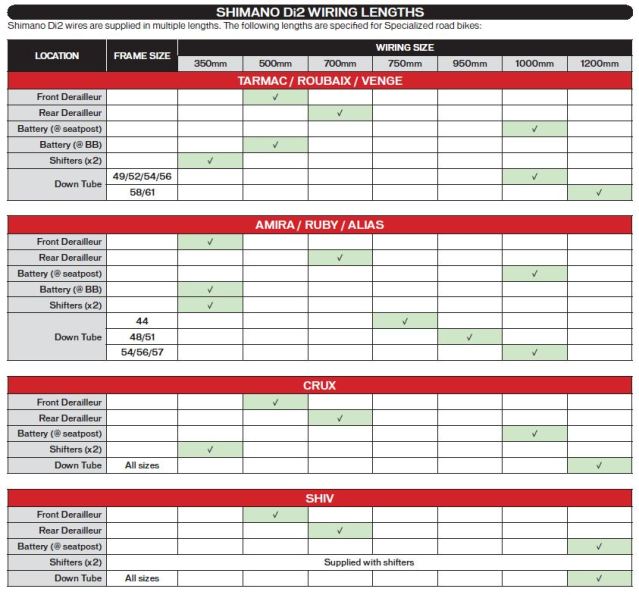

For di2 wire length, here is the schema sent from specialized :

For all other ultegra di2 components, I choose “old” ultegra 6871 with last battery version :

  • Shimano Di2 BCR2 Charger for BTR2 (battery charger)
  • shimano E-Tube SEIS di2 (battery)
  • Shimano SD50 Di2 Electric Wire (see schema for length)
  • Shimano ST-6871 (STI Gear levers for TT/tri bar without wire) + 2x 350mm di2 wire length
  • Shimano SW-R671 (triathlon shifters, comes with wire)
  • shimano SM-EW90-B (junction A - 5 ports)
  • shimano SM-JC41 (junction B)
  • shimano RD-6870 ultegra Di2 (rear derailleurs)
  • shimano FD-6870 ultegra Di2 (front derailleurs)
    .
6

Thanks a million, you are awesome!

7

Bumping this thread to ask whether anyone who’s done the conversion purchased the grommets? Are they needed? round or oval? Thanks.

8

I have a shiv-tt from 2016 and want du upgrade to di2. Do you know if this will go? Is there some ideas to where I can place Junction boxes?

9

First of all, you’ll obviously go for the ultegra 8000 series. Other than that, i’d go for the one button tt shifters and run full syncro mode (But that’s a personal preference). Profile design made aero bars that will hold the battery And the rs-910 Junction A box. That would probably be the way I’d do it

10

Thanks, greatly appreciated reply.
