So I got a good deal on a used Hed3c and turned it into a Hed3c disc.I still need to wet sand (600 then 1500)and do a final coat,the tire is not glued on yet I put it on for the pictures.
1yd carbon fiber,epoxy impregnating resin the spaces are filled with 3/16’’ thick foamcore.Each side is covered with one complete piece of carbon fiber.
very cool! that has been on my “to do” list for quite a while as well, damn, 930g, not bad at all…
Did you apply any type of vacuum bag or anything for curing?
id love to see that in a wind tunnel.
its probably a bit slower than a normal disc
but is it faster than an H3? that is the question.
probably…
very cool! that has been on my “to do” list for quite a while as well, damn, 930g, not bad at all…
Did you apply any type of vacuum bag or anything for curing?
No vacuum. What I did was instead of putting down a coat of resin which is messy and hard to work with(control) when working with a big sheet of c/f is a nice even coat of super77 spray mount to stick the c/f down into place.Once the c/f is down then I applied the impregnating resin ,2 coats ,it will go through the c/f to the base to bond.
The resin works best in a warm room, flows and spreads better.
that *is *a really nice job.
wow, that is amazing, how did u get the carbon weave to lay flat between the spokes? I thought it would ripple or stretch?

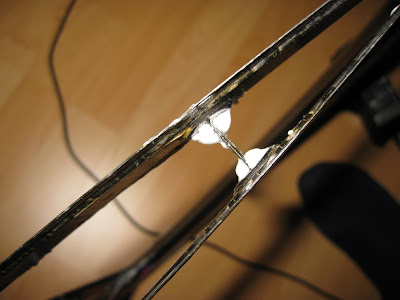

I also got creative with my rev-x and reinforced all the areas of angular deformation (from lateral flexing), with urethane bonding matrix (resin that dries hard, and not brittle), commonly avail as “Sumo Glue”

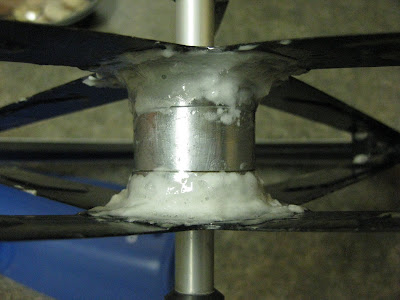

I got the increasing hub-flange idea from the limited run of REV-X’s in 2001-2002 that had a “New Improved Radial Hub Flange”
sure isn’t pretty tho… only added 16 grams of weight!
Ebay , Elite Motoring I use the 3k 2x2twill and epoxy resin.It looks like he is out of 2x2 black twill.They also red,gold,blue etc. I toyed with the idea of red but my bike and front wheel is clear carbon.
Its a HED 3D. I had one…nice wheel!
Looks awesome. Wish I had the room to play with projects like this.
Looks good, my only concern would be the effect on the braking surface? also what would happen if it somehow came unglued during heavy braking??
(1 yd. ) 36’’ x50’’ is enough for both sides
Looks good, my only concern would be the effect on the braking surface? also what would happen if it somehow came unglued during heavy braking??
I did not run the new c/f on to the original brake area, backed off about 3/8’'.

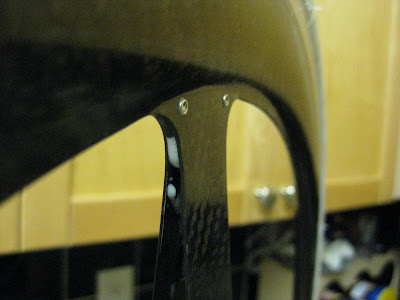

This picture shows brake area. Also needs finish top coat.
Awesome idea. Looks really well done too.
And with the spare CF, you can make aero chainring/spider covers, or rear mech cages.
Not at all! The original Hed 3D (technically only on the market for 3 or 4 months) was the best performing disc wheel ever made (as of about 2 years ago). Not sure how it stacks up against a Sub9, but I bet you it’s pretty darn good.
I want to make one in gold CF now!!
i wonder if this could be done with my spinergy rev x? it would be a torodial disc though…
any idea’s
sorry to threadjack…
I think the real question everyone wants to know is:
Does it make the same sound as a normal disc wheel when riding?
Sure I think it would be easier then H3.
Get a 2 pieces of black/black core mat board (your substrate)from a picture framer.Have it cut so it over laps about 3/8’’ on to the rim.cut out the hub hole also.
Glue it to the 4 spokes and inside area of the rim.
You will need to do a cut out for the valve stem.Also in the valve cut out you may want to put some 1’’ strips of foam in the inside area of the cut out.
For the c/f I would over lap it about 1/2’’ past the substrate on to the rim for a strong bond.
Sure I think it would be easier then H3.
Get a 2 pieces of black/black core mat board (your substrate)from a picture framer.Have it cut so it over laps about 3/8’’ on to the rim.cut out the hub hole also.
Glue it to the 4 spokes and inside area of the rim.
You will need to do a cut out for the valve stem.Also in the valve cut out you may want to put some 1’’ strips of foam in the inside area of the cut out.
For the c/f I would over lap it about 1/2’’ past the substrate on to the rim for a strong bond.
im trying to picture this… would this as as disc be smooth all the way around or will there be a lip at every spoke like the hed 3D?
Best performing as measured how?
Not at all! The original Hed 3D (technically only on the market for 3 or 4 months) was the best performing disc wheel ever made (as of about 2 years ago). Not sure how it stacks up against a Sub9, but I bet you it’s pretty darn good.
I want to make one in gold CF now!!
One solid piece on each side like a wheel cover.
I re-thought it and you can make the “covers” off the wheel then glue them down to the rim?
